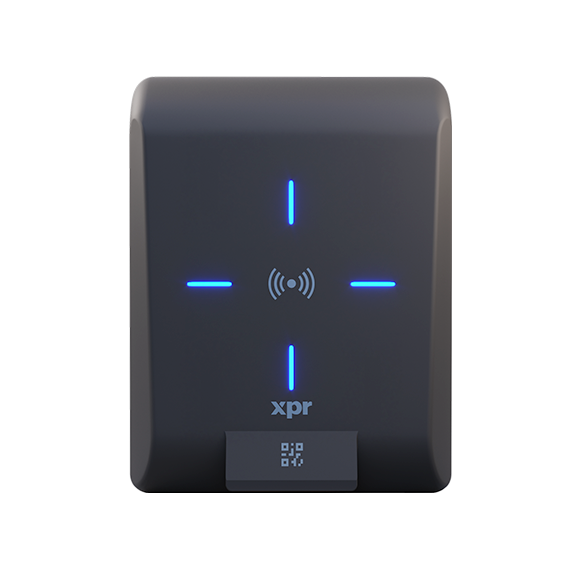

XP-QR
Multi-Technology RFID and QR Code Readers
These versatile RFID and QR code readers with multi-technology support integrate effortlessly with most access control systems available today. With an emphasis on enhanced durability and resistance, these readers are designed and thoroughly tested to offer extra protection against environmental factors or physical damage.
The multi-technology readers can be used with most access controllers available.
They can interact with Wiegand, OSDP, and RS-485 protocols as well as read QR codes and credentials at 13.56 MHz and 125 Khz.
QR Code
The reader is equipped with a high-performance optical sensor that can capture QR codes on paper and smartphone screens. With built-in illumination and an aiming spot, it delivers fast and accurate decoding, even in bright sunlight or complete darkness. Its focal distance ensures stable detection, providing a smooth and reliable user experience.
Xsecure
With Xsecure, every card access key is generated through an irreversible diversification process, making it distinct and unique. To prevent spoofing, the card’s data is thus encrypted, sealed, and error-checked.nnThis process is only visible to the reader and the production card encoding system.
More info
Interoperability
The Xpro multi-tech reader simplifies the handling of technological expansions, updates, and transitions.
The reader can read:
– Xsecure, ISO 14443-A (Mifare), ISO 15693, HID iClass CSN, LEGIC CSN, NFC CSN tags
– QR code (paper and smartphone surface)
– Smartphones with Mobile ID
Illumination

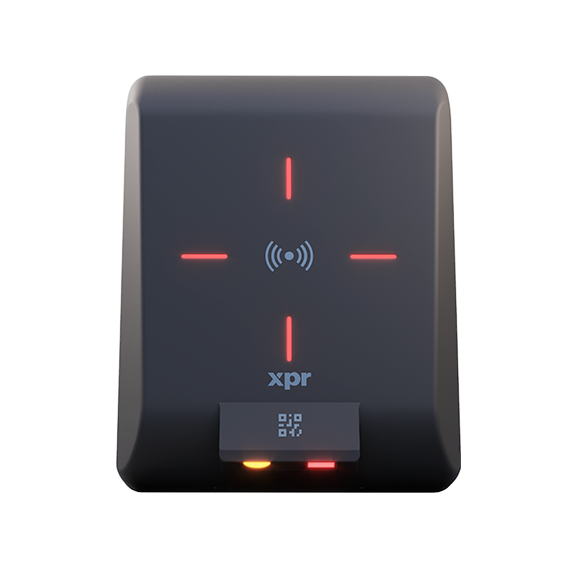

A front-facing tricolour LED that is intersected shows the reader’s status. Upon presentation of a credential, if access is allowed, the LED changes from blue to green; if not, it changes to red. When the reader is connected (idle mode) and prepared to accept credentials, a noticeable blue LED lights up.
Versatility
Our product features versatile mounting options that adhere to the standards commonly used in the UK, EMEA, the US, and most European countries. This ensures compatibility across various regions, providing ease of installation and peace of mind for our customers no matter where they are. It can be easily mounted on an electrical gang box.
Resistance
Highly secure outdoor proximity reader IP65
The IP rating evaluates how well electrical and electronic devices protect against moisture and solid intrusion. Our products are rated IP65, meaning they are appropriate for outdoor use since the IP65 rating implies total dust protection and resistance to low-pressure water jets.
Temperature -20ºC to +50ºC
The products are designed to function effectively across a wide temperature range. This capability ensures that they operate reliably in diverse settings, from extremely cold to high-heat environments.
General features
- Mounting: Surface
- Housing: Polycarbonate copolymer (UL94)
- Internal buzzer: With adjustable intensity using software
- Card reading range: Up to 9 cm, depending on the tag type and size
- QR code decoding range: 5 to 49 cm depending on barcode technology and size
- QR code illumination field and aiming spot: Field of view 42° x 28° and Focal distance 19.5 cm
- Communication: Wiegand, RS-485, OSDP and SSCP
- Tamper protection: Yes
- Wiring: Terminal block
- Operating frequency: 13.56 MHz or 125 Khz
- Operating voltage: 9 - 15 V DC
- Firmware Upgrades / Programming: USB-C
Features per reference
| Reference | Functions and credentials | |||
|---|---|---|---|---|
| 125 KHz EM/HID (EM 4100/HID Prox)l | 13.56 MHz CSN (ISO 14443-A (MIFARE®), ISO 15693, HID® iClass, NFC®) | Custom Encryption Mifare Desfire EV1, EV2, EV3 and Xsecure® | Mobile ID | |
| XP-QR-MFBT | — | ✓ | ✓ | ✓ |
| XP-QR-EHMFBT | ✓ | ✓ | ✓ | ✓ |
